The College of Engineering HPC cluster is a heterogeneous mix of about 130 servers providing over 4700 CPU cores, over 200 GPUs, and over 46 TB total RAM.  The systems are connected via gigabit ethernet and Infiniband. Most of the latest servers utilize Mellanox EDR or HDR InfiniBand network connection.  The cluster also has access to 500TB global fast scratch storage from DDN.  The CoE HPC Cluster is rated at nearly 2000 peak TFLOPS (double-precision).

Summary of HPC cluster:

  • 3 submit nodes
  • 3 Nvidia DGX H100 nodes w/ 112 CPU cores, 8 H100 GPUs, and 2.0 TB RAM each
  • 6 Nvidia DGX2 nodes w/ 48 CPU cores, 16 V100 GPUs, and 1.5 TB RAM each
  • 3 Nvidia DGXS nodes w/ 20 CPU cores, 4 V100 GPUs, and 256 GB RAM each
  • 10 Dell AMD EPYC nodes w/ 64-96 CPU cores and 384-512 GB RAM each
  • 12 Dell AMD EPYC nodes w/ 48-64 CPU cores, 2 A40 GPUs, and 256 GB RAM each
  • 45 Dell Intel Skylake/Cascadelake compute nodes, including:
    • 1 Dell DSS8440 node w/ 48 CPU cores, 8 A40 GPUs and 768 GB RAM
    • 3 Dell DSS8440 node w/ 40-48 CPU cores, 8 RTX8000 GPUs and 768 GB RAM
    • 1 Dell DSS8440 node w/ 40 CPU cores, 8 RTX6000 GPUs and 384 GB RAM
  • 28 Dell & Custom Intel Haswell/Broadwell compute nodes
  • 30 Dell Intel Sandy-bridge/Ivy-bridge compute nodes
  • more details below!



Submit Hosts (submit-a, b, c)

Model  Dell R740
Processor  Dual Processor 16 Core 2.10 Ghz Intel Xeon Gold 6130 with 22528 KB cache
Memory  256 GB RAM
Scratch storage  n/a
NIC

 4x Broadcom NetXtreme-E dual 10-Gigabit Ethernet Adapter

 Mellanox EDR InfiniBand

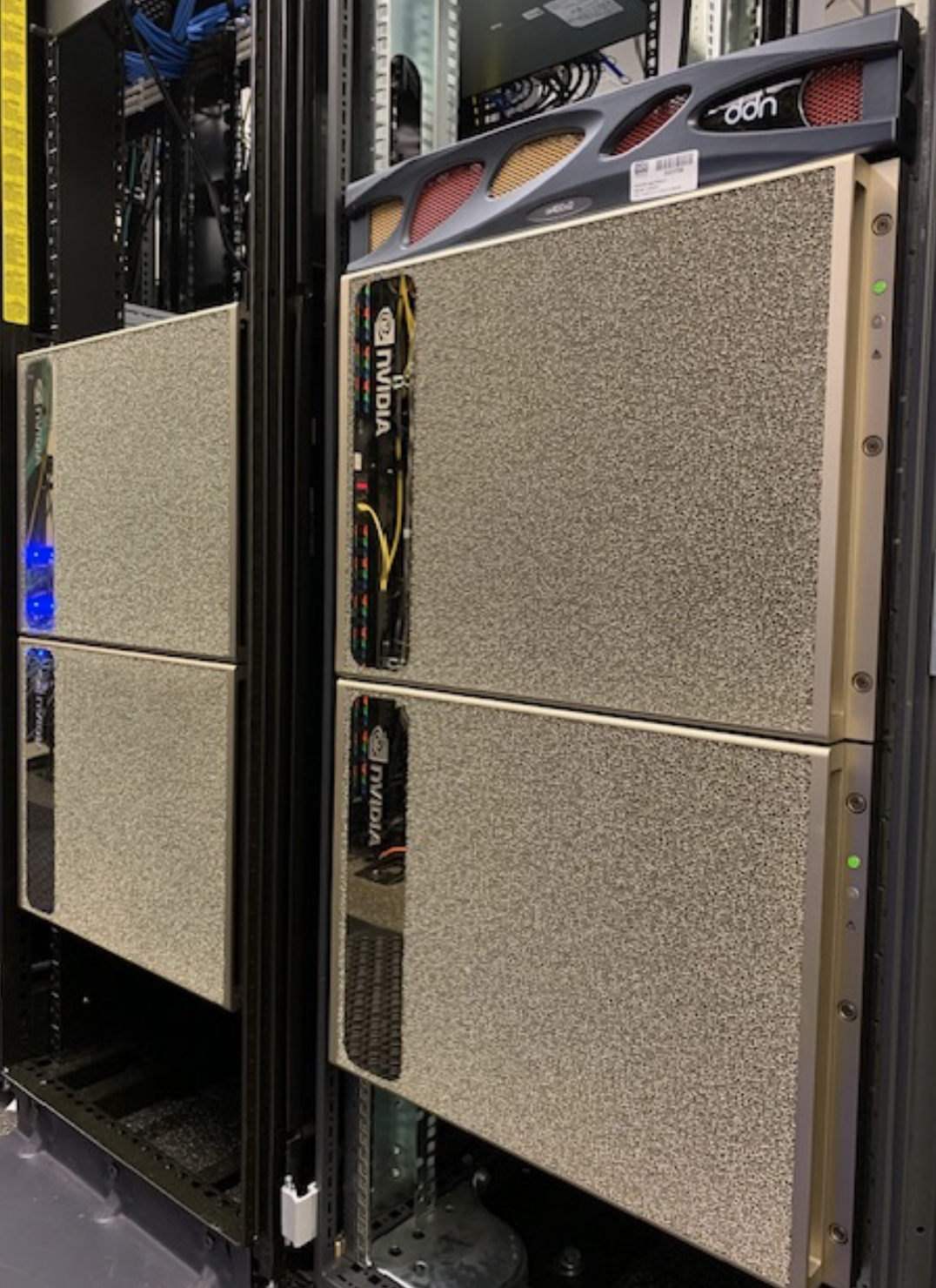

3 Nvidia DGX H100 nodes (dgxh-[1-3])

Model  Nvidia DGX H100
Processor  2x 56-core 2.0 Ghz Intel Xeon Platinum 8480CL CPU with 105 MB cache
GPUs  8 Nvidia Tesla H100 w/ 80GB VRAM
Memory  2.0 TB RAM @4800 MT/s
Scratch storage  24 TB NVME
NIC

 Mellanox 100G ethernet

 Mellanox HDR Infiniband



6 Nvidia DGX2 nodes (dgx2-[1-6])

Model  Nvidia DGX2
Processor  2x 24-core 2.70 Ghz Intel Xeon Platinum 8168 CPU with 33792 KB cache
GPUs  16 Nvidia Tesla V100 w/ 32GB VRAM
Memory  1.5 TB RAM @2666 MT/s
Scratch storage  28 TB NVME
NIC

 Mellanox 100G ethernet

 Mellanox EDR Infiniband



3 Nvidia DGXS nodes (dgxs-[1-3])

Model  Nvidia DGXS
Processor  20-core 2.20 Ghz Intel Xeon E5-2698 with 51200 KB cache
GPUs  4 Nvidia Tesla V100 w/ 32GB VRAM
Memory  256 GB RAM @2400 MT/s
Scratch storage  1.5 TB NVME
NIC

 2x Intel X550T 10-Gigabit Ethernet Adapter



22 AMD EPYC compute nodes:

cn-v-[1-8]

Model  8x Dell PowerEdge R6625
Processor  2x 48-core 3.6 GHz AMD EPYC 9474F w/ 512 MB cache
GPUs  n/a
Memory  384 GB RAM @4800 MT/s
Scratch storage  400 GB
NIC

 Broadcom BCM57416 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-u-[1-2]

Model  2x Dell PowerEdge R6525
Processor  2x 32-core 2.8 GHz AMD EPYC 7543 w/ 32768 KB cache
GPUs  n/a
Memory  512 GB RAM @3200 MT/s
Scratch storage  400 GB
NIC

 Broadcom BCM57416 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-t-1

Model  1x Dell PowerEdge R7525
Processor  2x 24-core 3.2 GHz AMD EPYC 7313 w/ 32768 KB cache
GPUs  3x Nvidia A40 w/ 48 GB VRAM
Memory  256 GB RAM @3200 MT/s
Scratch storage  844 GB
NIC

 Broadcom BCM5720 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-s-[1-5]

Model  5x Dell PowerEdge R7525
Processor  2x 24-core 3.2 GHz AMD EPYC 74F3 w/ 32768 KB cache
GPUs  2x Nvidia A40 w/ 48 GB VRAM
Memory  256 GB RAM @3200 MT/s
Scratch storage  844 GB
NIC

 Broadcom BCM57416 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-r-[5-6]

Model  2x Dell PowerEdge R7525
Processor  2x 32-core 2.6 GHz AMD EPYC 7513 w/ 32768 KB cache
GPUs  2x Nvidia A40 w/ 48 GB VRAM
Memory  256 GB RAM @3200 MT/s
Scratch storage  725 GB
NIC

 Broadcom BCM5720 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-r-[1-4]

Model  4x Dell PowerEdge R7525
Processor  2x 24-core 3.2 GHz AMD EPYC 7F72 w/ 16384 KB cache
GPUs  2x Nvidia A40 w/ 48 GB VRAM
Memory  256 GB RAM @3200 MT/s
Scratch storage  725 GB
NIC

 Broadcom BCM5720 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband



44 Skylake compute nodes:

sail-gpu0

Model  Dell PowerEdge DSS8440
Processor  2x 24-core 3.0 GHz Intel Xeon Gold 6248R w/ 36608 KB cache
GPUs  8x Nvidia A40 w/ 48 GB VRAM
Memory  768 GB RAM @2933 MT/s
Scratch storage  7.0 TB SSD
NIC

 Intel I350 Gigabit Ethernet Adapter

 Mellanox ConnectX-5 Infiniband

soundwave

Model  Dell PowerEdge R740xd2
Processor  2x 10-core 2.40 GHz Intel Xeon Silver 4210R w/ 14080 KB cache
Memory  384 GB RAM @2666 MT/s
Scratch storage  5.3 TB SSD
NIC

 Broadcom NetXtreme BCM5720

 Mellanox ConnectX-5 Infiniband

optimus

Model  Dell PowerEdge DSS8440
Processor  2x 20-core 2.10 GHz Intel Xeon Gold 6230 w/ 28160 KB cache
GPUs  8x Nvidia Quadro RTX 6000 w/ 22GB VRAM
Memory  384 GB RAM @2933 MT/s
Scratch storage  345 GB SSD
NIC

 Intel X710 10-Gigabit Ethernet Adapter

 Mellanox ConnectX-5 Infiniband

cn-gpu[6-7]

Model  Dell PowerEdge DSS8440
Processor  2x 24-core 3.0 GHz Intel Xeon Gold 6248R w/ 36608 KB cache
GPUs  8x Nvidia Quadro RTX 8000 w/ 44 GB VRAM
Memory  768 GB RAM @2933 MT/s
Scratch storage  7.0 TB SSD
NIC

 Intel X710 10-Gigabit Ethernet Adapter

 Mellanox ConnectX-5 Infiniband

cn-gpu5

Model  Dell PowerEdge DSS8440
Processor  2x 20-core 2.50 GHz Intel Xeon Gold 6248 w/ 28160 KB cache
GPUs  8x Nvidia Quadro RTX 8000 w/ 44 GB VRAM
Memory  768 GB RAM @2933 MT/s
Scratch storage  7.0 TB SSD
NIC

 Intel X710 10-Gigabit Ethernet Adapter

 Mellanox ConnectX-5 Infiniband

cn-q-[1-2]

Model  2x Dell PowerEdge R640
Processor  2x 24-core 3.0 GHz Intel Xeon Gold 6248R w/ 36608 KB cache
Memory  192 GB RAM @2933 MT/s
Scratch storage  345 GB
NIC

 Broadcom BCM5720 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-6 Infiniband

cn-p-1

Model  Dell PowerEdge R740xd
Processor  2x 24-core 3.0 GHz Intel Xeon Gold 6254R w/ 36608 KB cache
GPUs  1x Nvidia Tesla V100S w/ 32 GB VRAM
Memory  384 GB RAM @2933 MT/s
Scratch storage  345 GB
NIC

 Broadcom BCM5720 NetXtreme-E Ethernet Adapter

 Mellanox ConnectX-6 Infiniband

cn-o-1​​​​

Model  Dell PowerEdge R740
Processor  2x 24-core 3.0 GHz Intel Xeon Gold 6254R w/ 36608 KB cache
Memory  192 GB RAM @2933 MT/s
Scratch storage  345 GB
NIC

 Broadcom BCM5720 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-6 Infiniband

cn-n-[1-6]

Model  6x Dell PowerEdge R640
Processor  2x 18-core 3.10 GHz Intel Xeon Gold 6254 w/ 25344 KB cache
Memory  192 GB RAM @2933 MT/s
Scratch storage  345 GB
NIC

 Broadcom BCM57416 NetXtreme-E

 Mellanox ConnectX-5 Infiniband

cn-m-1

Model  Dell PowerEdge R740xd
Processor  2x 4-core 3.80 GHz Intel Xeon Gold 5222 w/ 16896 KB cache
GPUs  6x Nvidia Tesla T4 w/ 15 GB VRAM
Memory  192 GB RAM @2933 MT/s
Scratch storage  155 GB SSD
NIC

 Broadcom NetXtreme BCM5720 Ethernet Adapter

 Mellanox ConnectX-3 Infiniband

cn-m-2

Model  Dell Precision 7920
Processor  2x 8-core 2.50 GHz Intel Xeon Silver 4215 w/ 11264 KB cache
GPUs  2x Nvidia Quadro RTX 6000 w/ 24 GB VRAM
Memory  192 GB RAM @2666 MT/s
Scratch storage  165 GB SSD
NIC

 Intel I350 Gigabit Ethernet Adapter

 Mellanox ConnectX-5 Infiniband

cn-k-[1-4], cn-l-[1-2]

Model  6x Dell PowerEdge R740
Processor  2x 10-core 2.20 GHz Intel Xeon Silver 4114 w/ 14080 KB cache
Memory  64 GB RAM @2666 MT/s
Scratch storage  319-699 GB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-5 Infiniband

cn-j-[1-4]

Model  4x Dell PowerEdge R740
Processor  2x 16-core 2.10 GHz Intel Xeon Gold 6130 w/ 22528 KB cache
Memory  512 GB RAM @2666 MT/s
Scratch storage  346 GB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-i-[4-5]

Model  2x Dell PowerEdge R740
Processor  2x 12-core 2.60 GHz Intel Xeon Gold 6126 w/ 19712 KB cache
Memory  256 GB RAM @2666 MT/s
Scratch storage  259 GB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-i-[1-3]

Model  3x Dell PowerEdge R740
Processor  2x 12-core 2.10 GHz Intel Xeon Silver 4116 w/ 16896 KB cache
Memory  128 GB RAM @2666 MT/s
Scratch storage  282 GB
NIC

 Intel X550T 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-h-[5-8]

Model  4x Dell PowerEdge R740
Processor  2x 22-core 2.10 GHz Intel Xeon Gold 6152 w/ 30976 KB cache
Memory  128 GB RAM @2666 MT/s
Scratch storage  346 GB
NIC

 Mellanox ConnectX-4 Ethernet

 Mellanox ConnectX Infiniband

cn-h-[1-4]

Model  4x Dell PowerEdge R740
Processor  2x 10-core 2.20 GHz Intel Xeon Silver 4114 w/ 16896 KB cache
Memory  128 GB RAM @2666 MT/s
Scratch storage  203 GB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-g-[1-4]

Model  4x Dell PowerEdge R640
Processor  2x 14-core 2.20 GHz Intel Xeon Gold 5120 w/ 19712 KB cache
Memory  64-128 GB RAM @2666 MT/s
Scratch storage  259 GB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX Infiniband



21 Dell Intel Haswell/Broadwell compute nodes:

cn-gpu0

Model  Dell PowerEdge R730
Processor  2x 12-core 2.30 GHz Intel Xeon E5-2670v3 w/ 30720 KB cache
GPUs  2x Nvidia Tesla M60 w/ 8GB VRAM
Memory  256 GB RAM @2133 MT/s
Scratch storage  3.8 TB
NIC

 Broadcom BCM57416 NetXtreme-E 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-f-[1-5]

Model  5x Dell PowerEdge R730
Processor  2x 10-core 2.60 GHz Intel Xeon E5-2660v3 w/ 25600 KB cache
Memory  128 GB RAM @2133 MT/s
Scratch storage  203 GB
NIC

 Broadcom BCM57800 NetXtreme II 1/10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-e-[1-8]

Model  8x Dell PowerEdge R730
Processor  2x 10-core 2.60 GHz Intel Xeon E5-2660v3 w/ 25600 KB cache
Memory  64-128 GB RAM @2133 MT/s
Scratch storage  193 GB
NIC

 Broadcom BCM57800 NetXtreme II 1/10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband

cn-d-[1-2]

Model  2x Dell PowerEdge R930
Processor  2x 14-core 2.00 GHz Intel Xeon E7-4830v4 w/ 35840 KB cache
Memory  384 GB RAM @2400 MT/s
Scratch storage  203 GB
NIC

 Broadcom BCM57800 NetXtreme II 1/10-Gigabit Ethernet

 Mellanox ConnectX-4 Infiniband

cn-d-[3-5]

Model  3x Dell PowerEdge R930
Processor  2x 20-core 2.10 GHz Intel Xeon E7-8870v4 w/ 51200 KB cache
Memory  512-1536 GB RAM @2400 MT/s
Scratch storage  203 GB
NIC

 Broadcom BCM57800 NetXtreme II 1/10-Gigabit Ethernet

 Mellanox ConnectX-4 Infiniband

cn-c-[7-8]

Model  2x Dell PowerEdge C6320
Processor  2x 8-core 2.40 GHz Intel Xeon E5-2630v3 w/ 20480 KB cache
Memory  128-256 GB RAM @1866 MT/s
Scratch storage  757 GB
NIC

 Intel 82599ES 10-Gigabit Ethernet

 Mellanox ConnectX-3 Infiniband



25 Dell Intel Sandy-bridge/Ivy-bridge compute nodes:

cn-b-[1-6], cn-c-[1-6]

Model  12x Dell PowerEdge C6320
Processor  2x 8-core 2.60 GHz Intel Xeon E5-2650v2 w/ 20480 KB cache
Memory  64-96 GB RAM @1866 MT/s
Scratch storage  338 GB
NIC

 Intel I350 Gigabit Ethernet

 Mellanox ConnectX Infiniband

cn-a-[3-10]

Model  7x Dell PowerEdge R620
Processor  2x 8-core 2.90 GHz Intel Xeon E5-2690 w/ 20480 KB cache
Memory  256 GB RAM @1600 MT/s
Scratch storage  203 GB
NIC

 Broadcom NetXtreme BCM5720 Gigabit Ethernet

 Mellanox ConnectX Infiniband

cn-a-[1-2]

Model  2x Dell PowerEdge R620
Processor  2x 8-core 2.60 GHz Intel Xeon E5-2670 w/ 20480 KB cache
Memory  128 GB RAM @1600 MT/s
Scratch storage  203 GB
NIC

 Broadcom NetXtreme BCM5720 Gigabit Ethernet

 Mellanox ConnectX Infiniband

cn-9-[1-4]

Model  4x Dell PowerEdge R620
Processor  2x 6-core 2.50 GHz Intel Xeon E5-2640 w/ 15360 KB cache
Memory  128 GB RAM @1333 MT/s
Scratch storage  147 GB
NIC

 Broadcom NetXtreme BCM5720 Gigabit Ethernet





The cluster is running Redhat-based Rocky Linux 8 and 9 operating system (EL8 and EL9).

The batch queue environment is Slurm Workload Manager.

Popular software include:

Matlab (2023b, 2022b, 2021b)

Mathematica (13.3, 13.1, 12.3.1)

Ansys (2022r2, 2021r2, 2020r2)

StarCCM+ (18.04, 17.04, 16.06, 15.06)

Gurobi (10.0, 9.5, 9.1, 8.1)

Intel Cluster Parallel Studio (2017-2020)

Intel OneAPI

GCC 5.x - 12.x

Cuda 12.x, 11.x, 10.x, 9.2

The OSU College of Engineering maintains a shared High Performance Computing Cluster (HPCC) for research use.  The cluster currently consists of a heterogeneous mix of about 130 compute nodes providing nearly 4000 CPUs, over 200 GPUs, and over 43 TB RAM. The cluster is highlighted by the recent addition of 3 Nvidia DGX H100 systems, each with 112 cores, 8 Hopper H100 GPUs, 2.0 GB RAM and 25 TB local scratch space, and our 6 Nvidia DGX-2 systems, each with 48 cores, 16 Tesla V100 GPUs, 1.5 TB RAM and 27 TB local scratch space.  The cluster also has 24 additional GPU servers which include the A40, Tesla V100, Tesla T4, Quadro RTX 6000, and Quadro RTX 8000 GPUs. All servers are connected to both the primary engineering network as well as a second private high speed network for improved performance of parallel jobs.  Most of the recent additions to the cluster are equipped with HDR and EDR Infiniband high speed network connections.  There is about 150 TB of high speed shared disk space available for cluster job use, served from a DellEMC Isilon H500 with dual 40Gb uplinks.  All computer resources are stored in a temperature controlled server room, which is protected with both a UPS for short term power fluctuations and a diesel motor generator for long term power outages.

NVIDIA

NVIDIA DGX

DELL EMC
